Ultrathin organic material enhances e-skin displays April 20, 2016, 11:13

For use in electronic devices integrated into the human body, wearable electronics need to be thin and flexible to minimize impact where they attach to the body.

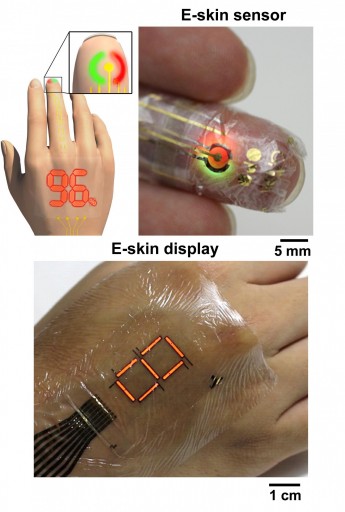

Top left: System outline of a blood oxygen level monitor. Top right: Red and green polymer light-emitting diodes (PLEDs) are directed to shine into the finger. Reflected light from inside the finger is caught by an ultraflexible organic photodetector. This reflected light provides a measure of blood oxygen and pulse rate. Bottom: The output of the sensor can be shown on a PLED display. (credit: Someya Laboratory)

But most devices developed so far have required millimeter-scale-thickness glass or plastic substrates with limited flexibility, and micrometer-scale thin flexible organic devices have not been stable enough to survive in air.

The research group of Professor Takao Someya and Dr. Tomoyuki Yokota at the University of Tokyo’s Graduate School of Engineering has now developed a high-quality protective film less than two micrometers thick that enables the production of ultrathin, ultraflexible, high-performance wearable electronic displays and other devices.

The group developed the protective film by alternating layers of inorganic (Silicon Oxynitrite) and organic (Parylene) material. The protective film prevented passage of oxygen and water vapor in the air, extending device lifetimes from the few hours seen in prior research to several days. In addition, the research group was able to attach transparent indium tin oxide (ITO) electrodes to an ultrathin substrate without damaging it, making the e-skin display possible.

Using the new protective layer and ITO electrodes, the research group created polymer light-emitting diodes (PLEDs) and organic photodetectors (OPDs). These were thin enough to be attached to the skin and flexible enough to distort and crumple in response to body movement.

The PLEDs were just three micrometers thick and more than six times more efficient than previously reported ultrathin PLEDs. This reduced heat generation and power consumption, making them particularly suitable for direct attachment to the body for medical applications such as displays for blood oxygen concentration or pulse rate. The research group also combined red and green PLEDs with a photodetector to demonstrate a blood oxygen sensor.

In addition to medical uses, Someya sees this technology as a kind of ultra mood ring. «The advent of mobile phones has changed the way we communicate. While these communication tools are getting smaller and smaller, they are still discrete devices that we have to carry with us," he says. «What would the world be like if we had displays that could adhere to our bodies and even show our emotions or level of stress or unease? They might enhance the way we interact with those around us or add a whole new dimension to how we communicate.»
