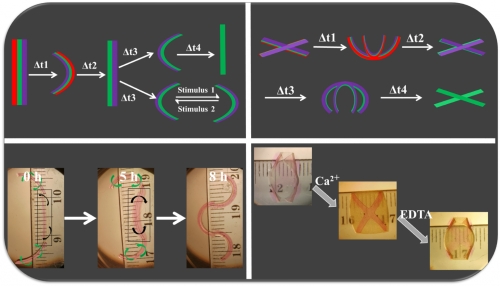

4D hydrogel-based materials can undergo multiple conformational shape changes in response to environmental cues. (Image: Aixiang Ding)
Now, researchers at the University of Illinois Chicago have developed new 4D hydrogels — 3D materials that have the ability to change shape over time in response to stimuli — that can morph multiple times in a preprogrammed or on-demand manner in response to external trigger signals.
In a new Advanced Science study, the UIC researchers, led by Eben Alsberg, show that these new materials may be used to help develop tissues that more closely resemble their natural counterparts, which are subject to forces that drive movement during their formation.
“The hydrogels can be programmed or induced to undergo multiple controllable shape changes over time. This strategy creates experimental conditions to partially mimic or stimulate the continuous different shape changes that developing or healing tissues undergo, and it may let us study morphogenesis and also help us engineer tissue architectures that more closely resemble native tissues,” said Alsberg, the Richard and Loan Hill Professor of Biomedical Engineering and corresponding author on the paper.
The novel material is made up of different hydrogels that swell or shrink at different rates and extents in response to water or the concentration of calcium. By creating complex layering patterns, the researchers can guide the conglomerate material to bend one way or another as the layers swell and/or shrink.
“We can change the shape of these materials by adjusting, for example, the amount of calcium present,” said Alsberg, who also is professor of orthopaedics, pharmacology and mechanical and industrial engineering at UIC.
In their experiments, the researchers were able to cause the hydrogel to form into pockets similar in shape to alveoli, the tiny sac-like structures in the lung where gas exchange takes place.
Not only are Alsberg’s hydrogels able to change their architecture multiple times, but they also are highly cytocompatible, which means they can have incorporated cells and the cells remain alive — something that many existing 4D materials are unable to do.
“We are really looking forward to pushing the limits of what our unique hydrogel systems can do in terms of tissue engineering,” said Aixiang Ding, postdoctoral research associate at UIC and co-first author on the paper. UIC’s Oju Jeon, research professor, is also a co-first author.
UIC’s Rui Tang, Yu Bin Lee and Sang Jin Lee are co-authors on the paper.
This research was supported by grants from the National Institutes of Health’s National Institute of Arthritis and Musculoskeletal and Skin Diseases (R01AR069564, R01AR066193) the National Institute of Biomedical Imaging and Bioengineering (R01EB023907) and the National Heart, Lung and Blood Institute (T32HL134622).
Written by Sharon Parmet
